Quick Details

  • Type: Gps Tracker
  • Use: Automotive
  • Screen Size: N/A
  • Function: Tracking
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Lexitek
  • Model Number: LT103A
  • Warranty: 1 Years
  • GPS Chip: SIRF III chip
  • Network: GSM / GPRS
  • GSM Frequency: 850 / 900 / 1800 / 1900
  • GSM/GPRS Module: Simcom Sim340
  • GPS Sensitivity: -159 dBM
  • GPS Accuracy: 5 M
  • Working Temperature: -20 to 55 C
  • Battery: Rechargeable 3.7 V 800 mAh Li-ion Battery
  • Dimension: 103 (L) x 54 (W) x 34 (H) mm
  • System compatibility: Windows7 and Windows Vista

Packaging & Delivery

Packaging Details: Dimension: 54*62*26 mm
Weight:120 g
Box: 13*19*5.7 cm
Box weight:0.65 kg
Carton size:53.4*39.9*30.4 cm
Qty/carton: 40pcs/ctn
Net Weight: 26kg/ctn
Gross Weight:28kg/ctn
Delivery Detail: 1 to 5 days after recept of payment

google map gps tracker with geo fence function










Product Description

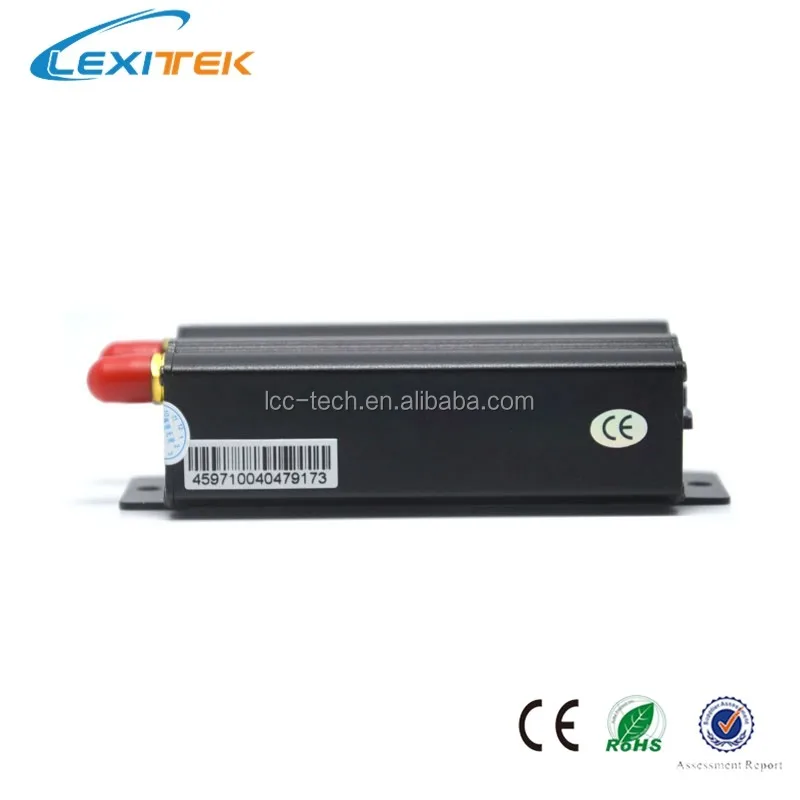

Introducing the GPS Car Tracker for global vehicle tracking. This is one of the best fleet management and vehicle protection systems available today. With its convenient SMS ability, full-range of alarm functions (including gas to engine cut off), and lots more, the LT103A GPS Car Tracker is the ultimate safety device for your car, van, truck, or even the entire vehicle fleet.







Here is a small list of what it can do for you and your vehicle:







   Track on Demand - Replies with a TXT message of current latitude, longitude, speed, and time, as well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your vehicle is.



   Data Logger - now with a MicroSD card slot, the GPS tracker turns into a data logger by storing location data directly onto it. With the included software, you can easily track your vehicle’s route afterwards.



   Geo-fencing control - When the vehicle moves in/out the preset scope, it will send an SMS alarm to the authorized phone numbers.



   Movement and Speed Alert: The tracker can warm you with SMS message when the vehicle starts to move from a stationary status, or when the vehicle is moving faster than a preset speed.



   Stop the Engine: You can send an SMS message to the tracker to cut off the gas and battery power, so the engine will remain in an immobilized state until your remove the alarm status.



   GPRS: With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with the supplied software on your computer.

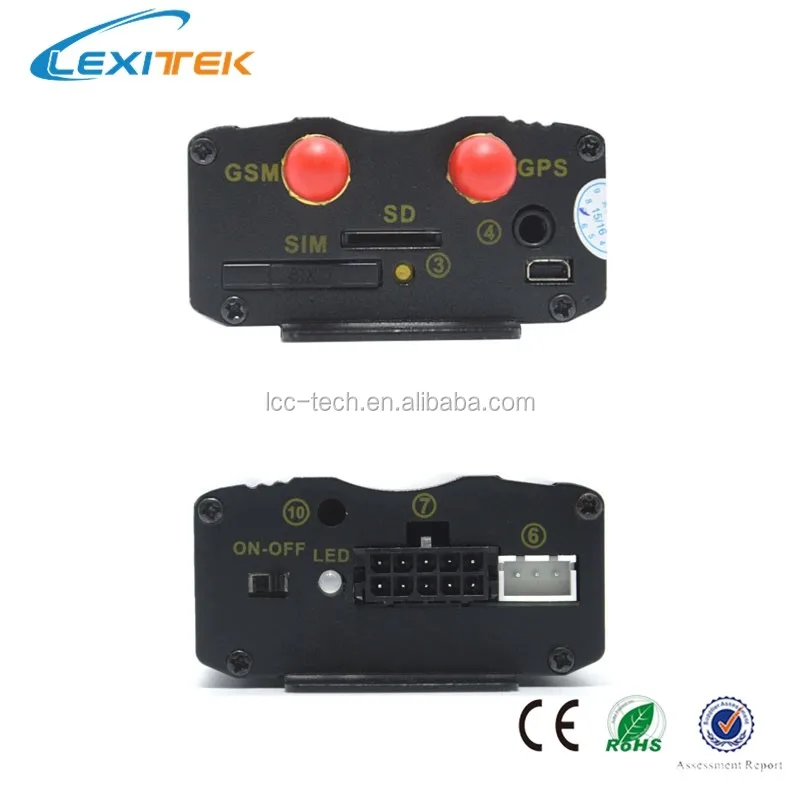

So how does the GPS Car Tracker work? The unit is powered by automotive battery, and should be installed inside a vehicle. It runs on the latest GPS SiRF III chip-set, a sophisticated GPS microchip embedded into the heart of the tracker which continually reads its own location from low orbiting global satellites and then utilizes the GSM/GPRS infrastructure operated by your cellular network provider to transmit its current location to you. All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.







google map gps tracker with geo fence function LT103A  SPECIFICATION

DIM.

83*54*26mm

Weight

120g

Network

GSM/GPRS

Band

850/900/1800/1900Mhz

GSM/GPRS Module

CB900

GPS Module

SIRF3 chip

GPS sensitivity

-159dBm

GPS Accuracy

5m

GPS Start Time

Cold status  45s

Warm status  35s

 Hot status  1s

Built in Memory

N/A

Applicable  vehicle power

12 V -24V

Backup battery

Chargeable 3.7V 500mAh Li-ion battery

Storage Temp

-40°C to +85°C

Operation Tem.

-20°C to +65°C

Humidity

5%--95% non-condensing

Altitude Limit

18,000 meters (60,000 feet) max

Velocity Limit

515 meters/second (1000 knots) max

Online tracking system

Web based online tracking platform: www.gpstrackerxy.com

 (demo account: demo, password: 8888.)

Iphone/Android application

Trackerhome

Features and functions

Monitor

Single Locating

Location based service (LBS)

ACC working alarm

Cut off the Oil and Power System

Calibration of fuel sensor

Low battery alarm

Power off alarm

GPS blind Spot alert

SOS

Geo-fence

Movement alarm

Over speed alarm

Fuel alarm

Door open alarm

ACC Alarm

Built in Acceleration Sensor Alarm

Built in Shock sensor sensitivity configuration

Alarm without GSM network service

Sleep Mode

Tracking solutions

1. SMS tracking on cellphone with a googlemap link to view current location on map  on cellphone screen.
2. Get absolute address by SMS
3. PC Installation software tracking.
4. Web server online tracking www.gpstrackerxy.com

(demo account: demo, password: 8888.)



Online tracking system



www.gpstrackerxy.com(demo account: demo, password: 8888.)







Location SMS



Android App



Iphone App

I









Packaging & Shipping







Package Contents for  google map gps tracker with geo fence function

GPS Car Tracker
GPS Antenna
GSM Antenna
Microphone
Relay
Wiring
English Manual



Siren (Optional)
Shake sensor(Optional)
Ultrasonic fuel sensor(Optional)







FAQ



Q: How do I make sense of the longitude and latitude data this unit provides?

A: Both Google Maps and Google Earth can easily translate the data into usable visual information.



Q:The unit does not pick up a GSM signal and the SMS functions aren't working, what's wrong?

A:
A number of things could cause this to happen:

1) Make sure the SIM card is compatible GSM 850/900/1800/1900Mhz(only 2G, 2.5G, 2.75G SIM cards work)

2) Make sure there is money left on the SIM card and that it has not expired

3) Make sure there is no PIN code associated with the SIM card

4) Make sure roaming is enabled on your SIM account if you are in a different country



Q:How can I track the units?

A:

1. SMS tracking on cellphone with a googlemap link to view current location on map  on cellphone screen.
2. Get absolute address by SMS
3. Android or Iphone app trackerhome.
4. Web server online tracking www.gpstrackerxy.com(demo account: demo, password: 8888.)
